The Best Pedalboard Power Supply: Power to All the Pedals!
Reduce hum, expand your board, power all your pedals!
4,8 / 5,0 |
As pedalboards grow, so does the need for sufficient power. Whether you’re in the market for your first board, or you’re (as many of us) expanding, or you’re setting up a secondary board for practicing or smaller gigs, you’re going to want to know about the best pedalboard power supply. Let’s take a look.
Our Suggestions
The Best Pedalboard Power Supply: What to Look For
It might not be the most romantic, most game-changing guitar-related thing ever. However, a well-built pedalboard power supply can make a significant difference on an ever-growing pedalboard with pedals that have ever-growing demands in amperes and volts. Therefore, consider these things first before selecting one.
When selecting a power supply for your pedalboard, choosing one with isolated outputs is crucial. These prevent ground loop hum and interference between pedals. Each isolated output acts like a separate power supply. Cheaper daisy-chain solutions may work in simple setups, but once your board grows or includes sensitive pedals, isolation becomes crucial.
Multiple Voltage and Current Options
Another key consideration is voltage and current compatibility. Most pedals run on 9V DC, but some require 12V, 15V, or even 18V. A more professional power supply will offer a mix of voltages and higher current outputs. Ensure that you check the respective requirements of your pedals to ensure the supply can deliver sufficient power to each.
Another factor to consider when selecting the best pedalboard power supply is its form factor and mounting flexibility. A power supply should fit neatly under or on top of your pedalboard without obstructing cabling or pedal placement. And lastly, consider the number of pedals you (will) need power for. This concerns both the current board and possible expansion.
As always, this list is strictly sorted by price, not any other metric.
Harley Benton PowerPlant ISO-2 Pro
This multi-output power supply features eight fully isolated, filtered, and short-circuit-protected outputs. With two high-current outputs supporting switchable voltages of 9, 12, or 18 volts at up to 500 mA, it’s also ideal for more power-hungry digital effects. The remaining six outputs deliver stable 9V DC at 300 mA each—perfect for analog pedals or standard stompboxes.
The Harley Benton PowerPlay ISO-2 Pro comes complete with all necessary power cables, including eight standard 60 cm coaxial leads and a voltage-doubling Y-cable for pedals that require higher voltage. Powered by a 12V DC adapter (included), this supply balances flexibility and reliability, making it a strong contender for the best pedalboard power supply.
The Harley Benton PowerPlant ISO-2 Pro is available from Thomann* for $68.00 / £59.00 / 69.00€. If you need a more flexible solution, the PowerPlant ISO-Li09 also comes with eight outputs but it adds a rechargeable battery that’ll last for 3.5 hours. You can also get it from Thomann* for $115.00 £105.00 / 119.00€.
Fender Engine Room LVL8
The Fender Engine Room LVL8 combines robust performance with a sleek, aesthetic appeal. With six dedicated 9V outputs providing up to 500 mA each and two additional outputs that can be switched between 9V, 12V, and 18V, it can power both classic analog pedals and modern digital units. The unit also features USB-A and USB-C ports, so you can charge your smartphone or tablet on stage, should you need it.
The power brick ships with a wide array of high-quality cables, including options for reverse polarity, different plug sizes, and even a 9V battery clip and daisy-chain extension for added versatility. Whether in the studio or on stage, this unit delivers. Making it a strong contender for the best pedalboard power supply for players who value both function and form.
The Fender Engine Room LVL8 is available from Thomann* for $170.00 / £152.00 / €175.00.
Truetone 1 Spot Pro CS12
The Truetone 1 Spot Pro CS12 is engineered for complex pedalboard configurations, offering unmatched versatility with its twelve galvanically isolated outputs. Each output is optimized for different voltage and current needs: from 9V to 18V DC, including a rare 9V AC output for pedals that require alternating current. With a total power capacity of 2900 mA, it can support a wide variety of analog, digital, and high-draw effects simultaneously.
The CS12 is compatible with global voltages from 100 to 240V, making it tour-ready out of the box. The bundle includes mounting brackets to mount it under Pedaltrain boards, along with a set of power cables and adapter plugs for various pedal types. Might this be the best pedalboard power supply?
You can get the Truetone 1 Spot Pro CS12 from Thomann* for $215.00 / £189.00 / €219.00.

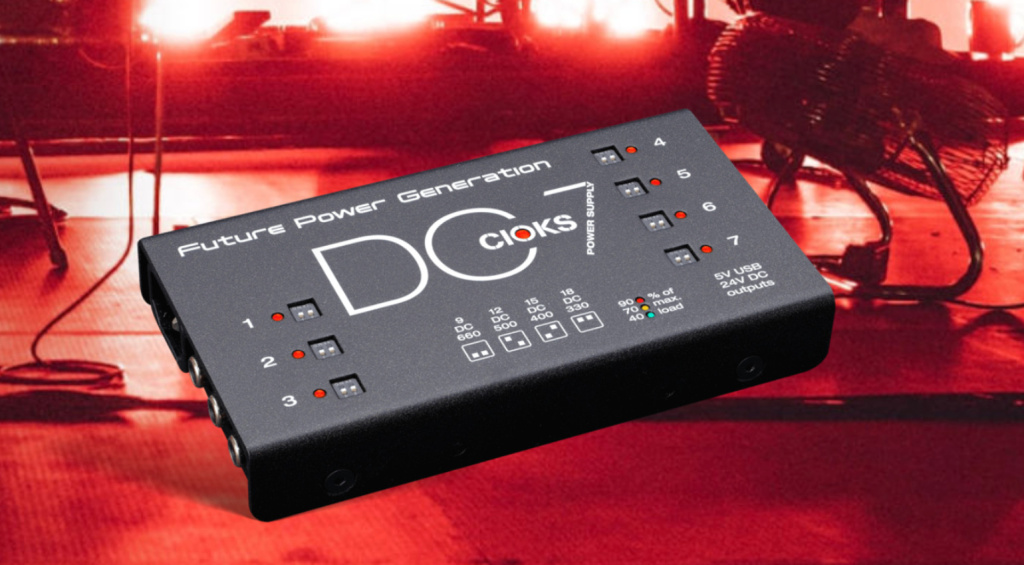

Cioks DC7
With seven fully isolated outputs, each capable of delivering 9V at 660mA and adjustable to four different voltages, the Cioks DC7 easily accommodates analog pedals and digital multi-effects. Additionally, its built-in multi-stage filtering ensures an exceptionally low noise floor.
Built with global touring in mind, the DC7 supports 90–265V AC input and includes a USB output for charging mobile devices. Its True Power meter gives real-time feedback on total load, ensuring you’re never caught off guard by power demands. At only 25.4 mm thick and weighing just 0.5 kg, it’s one of the flattest, lightest high-end options available, and it’s close to the best pedalboard power supply.
The Cioks DC7 costs $233.00 / £209.00 / €238.00 at Thomann*.

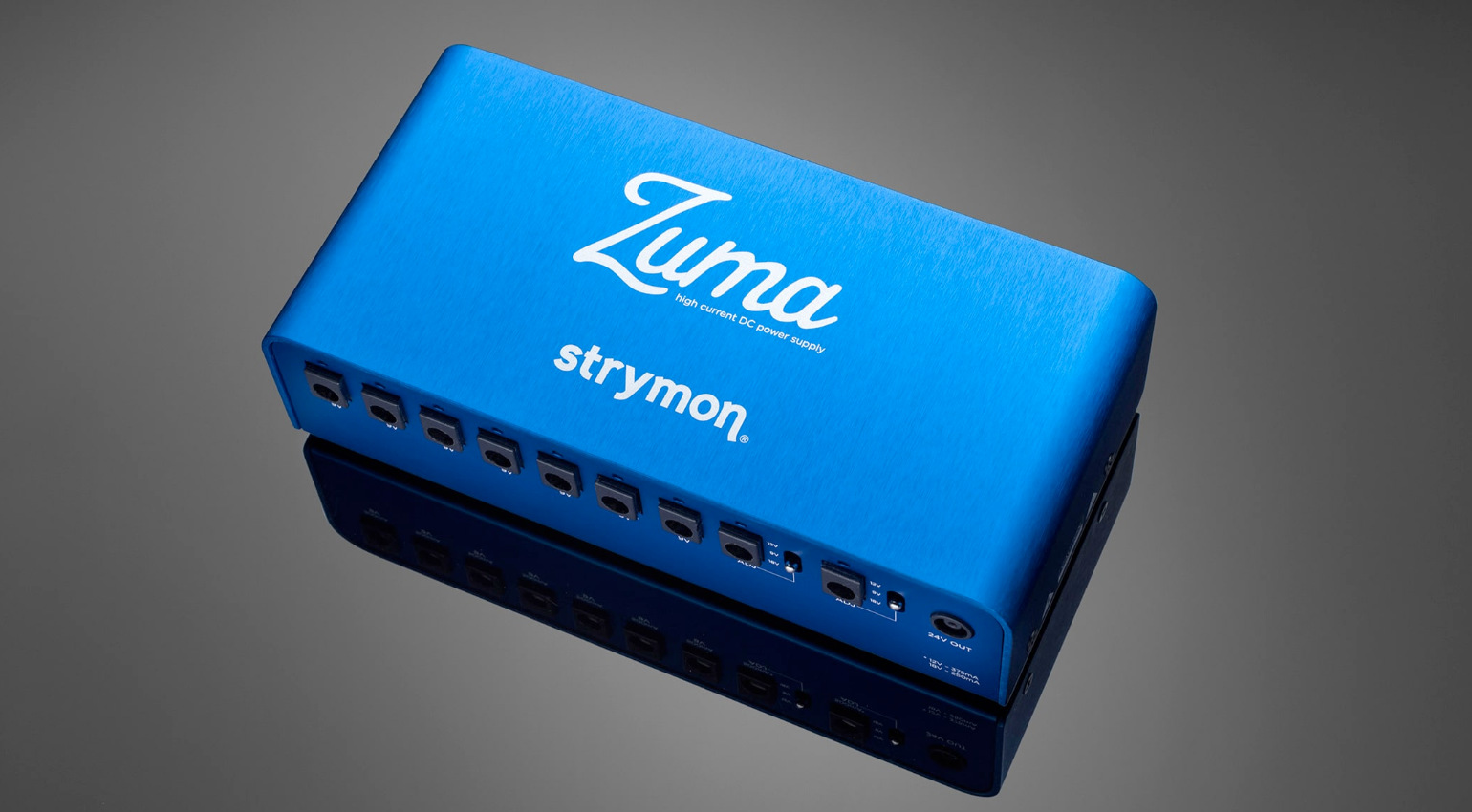

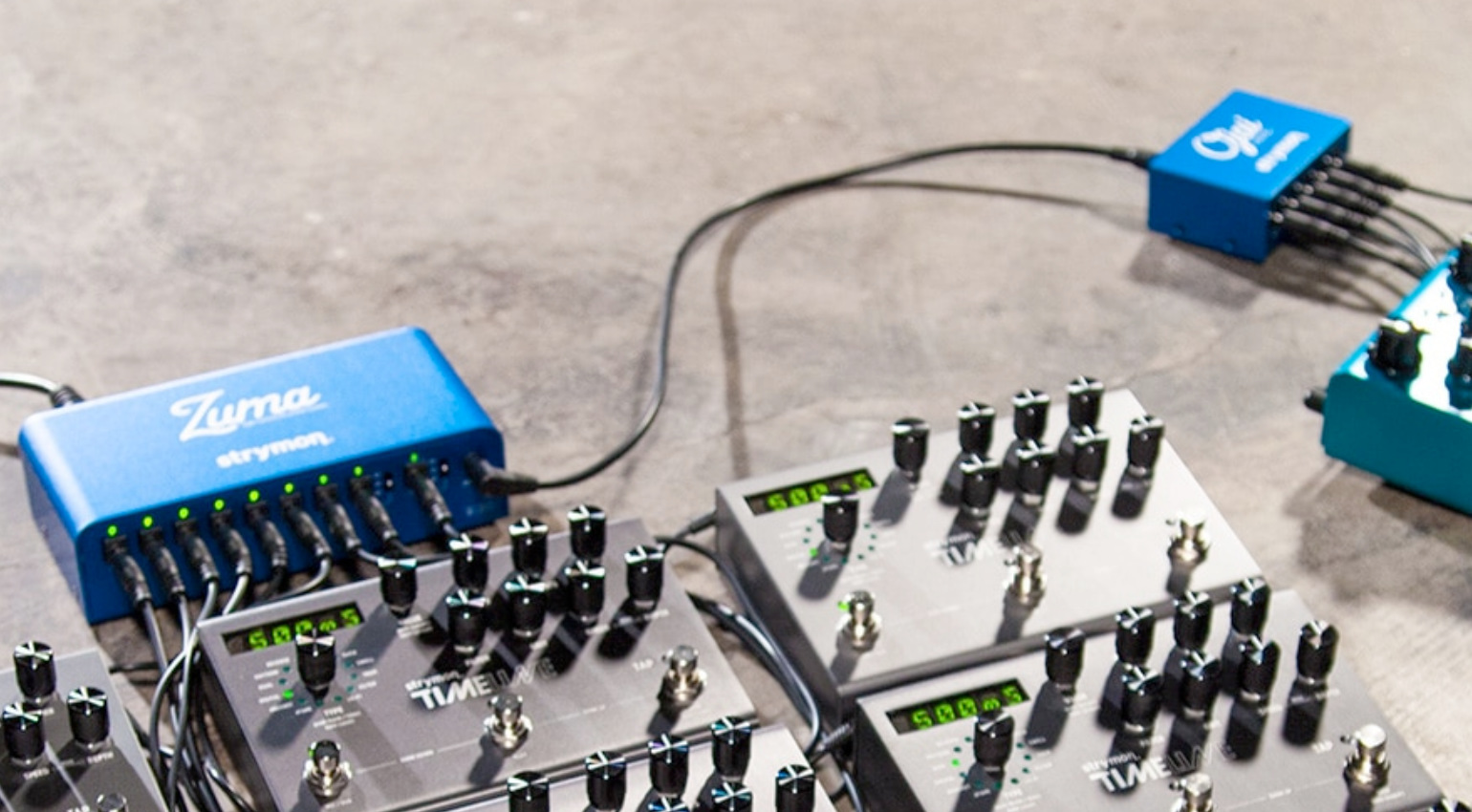

Strymon Zuma
With nine fully isolated high-current outputs (seven fixed at 9V/500 mA and two switchable to 12V or 18V), the Strymon Zuma delivers power for a wide range of effects. Built with expansion in mind, the Zuma also features a 24V OUT jack, allowing easy integration with additional power supplies for larger setups.
The unit comes with nine premium-quality power cables and a detachable IEC power cord. With its sturdy build, made in the USA pedigree, and future-proof flexibility, the Zuma remains a top contender in any best pedalboard power supply.
Strymon Zuma is available from Thomann* for $255.00 / £225.00 / €259.00.

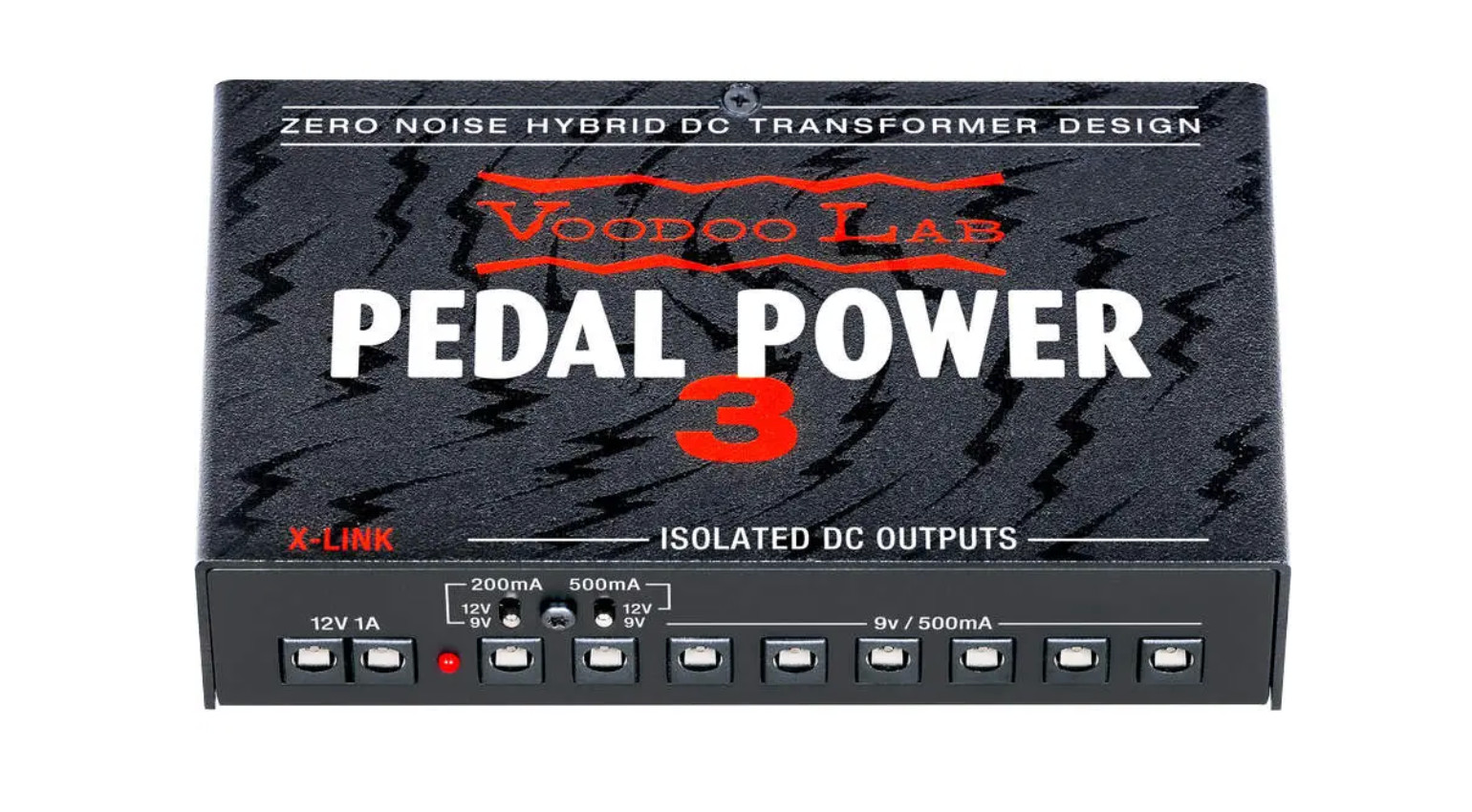

Voodoo Lab Pedal Power 3
The Voodoo Lab Pedal Power 3 Plus is a premium-grade power supply featuring twelve individually isolated outputs: ten fixed at 9V/500mA and two switchable to 12V. Its hybrid DC transformer and linear regulation ensure whisper-quiet operation. Designed with expansion in mind, the Pedal Power 3 Plus features X-LINK ports, allowing you to connect additional power units like the X4 or X8 and scale your board up to 16 isolated outputs.
Housed in a slim, lightweight aluminum chassis and compatible with global voltages (100–240V AC), it’s a top choice for international touring musicians. Made in the USA and built to endure the rigors of stage and studio, it’s a serious contender for the best pedalboard power supply.
The Voodoo Lab Pedal Power 3 is available from Thomann* for $299.00 / £269.00 / €309.00.
Walrus Audio Canvas Power 15
The Walrus Audio Canvas Power 15 offers a staggering 15 fully isolated outputs—each capable of delivering 500 mA. It’s a strong contender for the best pedalboard power supply. Plus, two of the outputs are switchable between 9V, 12V, and 18V. And an LED meter displays total power usage, so you always know how much headroom you’ve got left.
The Canvas Power 15 fits under most standard boards and includes right-angled pedal-side plugs and ultra-slim supply connectors. It also includes a USB-C port for charging accessories and 24V in/out ports for connecting additional Canvas Power Link modules.
The Walrus Audio Canvas Power 15 costs $305.00 / £276.00 / €313.00 at Thomann*.
*Disclaimer: This post about the best pedalboard power supply contains affiliate links and/or widgets. When you buy a product via our affiliate partner, we receive a small commission that helps support what we do. Don’t worry, you pay the same price. Thanks for your support!
